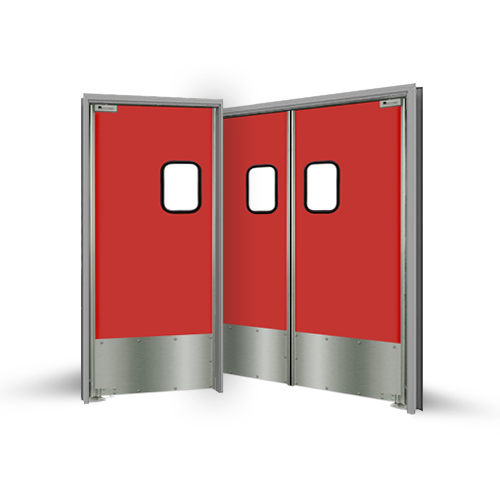

LWP-6 Aluminum Traffic Door

A Lightweight & Flexible Solution

The Eliason® LWP-6 traffic door is a lightweight, economical solution where visual separation is desired between kitchen and dining areas, customer service and back room, or sales floor and stockroom. The door body is constructed of a special alloy .063” thick tempered aluminum that creates a durable door with just the right amount of flexibility. The LWP-6 comes standard on both sides with a decorative high pressure laminate (HPL) available in a virtually unlimited choice of colors and patterns. Standard 12” high stainless steel base plates are located on both sides. Standard vision panels are 9” x 14” set in black rubber molding. Various window sizes and shapes, impact plates, push plates and other options are also available. The LWP-6 operates on the Eliason Easy Swing Hinge®.

Specifications

    • Door Classification: Aluminum traffic door
    • Door Design: The door body is constructed of a .063" thick tempered aluminum alloy with delta formed vertical edges, available with optional .032" decorative high-pressure laminate on both sides
    • Face Sheet Material: Tempered aluminum alloy with satin anodized finish

Construction

    • Base Plate: 12" high stainless steel (both sides)
    • Door Thickness: .063"
    • Hinge: Eliason Easy Swing® Hinge System
    • Window: Standard 9" x 14" acrylic set in black rubber molding

Designs and Colors

Antique White
Antique White
Bannister Oak - WilsonArt #7806-60
Bannister Oak - WilsonArt #7806-60
Biltmore Cherry - WilsonArt #7924-7
Biltmore Cherry - WilsonArt #7924-7
Black
Black
Blossom Cherrywood - Formica #758-58
Blossom Cherrywood - Formica #758-58
Brittany Blue - WilsonArt #D321-60
Brittany Blue - WilsonArt #D321-60
Dark Chocolate - Formica #2200-58
Dark Chocolate - Formica #2200-58
Desert Beige - Formica #899
Desert Beige - Formica #899
Fog Formica - #961
Fog Formica - #961
Frosty White - WilsonArt #1573-60
Frosty White - WilsonArt #1573-60
Graphite Formica - #837-58
Graphite Formica - #837-58
Gunstock Walnut - Nevamar #WW93693
Gunstock Walnut - Nevamar #WW93693
Manitoba Maple - WilsonArt #7911-60
Manitoba Maple - WilsonArt #7911-60
Natural Maple - Formica 756-58
Natural Maple - Formica 756-58
Natural Oak - Formica #346-58
Natural Oak - Formica #346-58
Platinum WilsonArt #D315-60
Platinum WilsonArt #D315-60
Prestige Walnut Formica #6209-43
Prestige Walnut Formica #6209-43
Raven Nevamar #S6033T
Raven Nevamar #S6033T
Smoky White Nevamar #S7027G
Smoky White Nevamar #S7027G
Spectrum Red - Formica #845
Spectrum Red - Formica #845
Storm Formica - #912-58
Storm Formica - #912-58
White
White
Wild Cherry - WilsonArt #7054-60
Wild Cherry - WilsonArt #7054-60

Parts

Hinge Roller
LWP DSP Roller Assembly
Top Bracket
LWP DSP Top Bracket
Lower Hinge
LWP DSP Lower Hinge
Hinge Cover
DSP and LWP hinge cover
